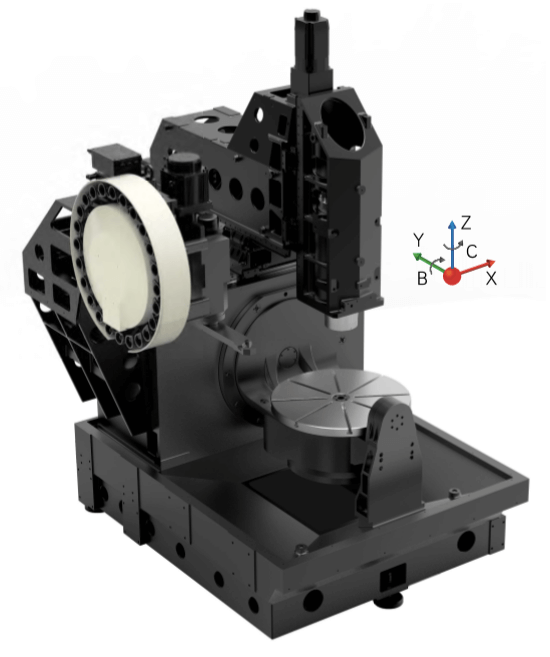

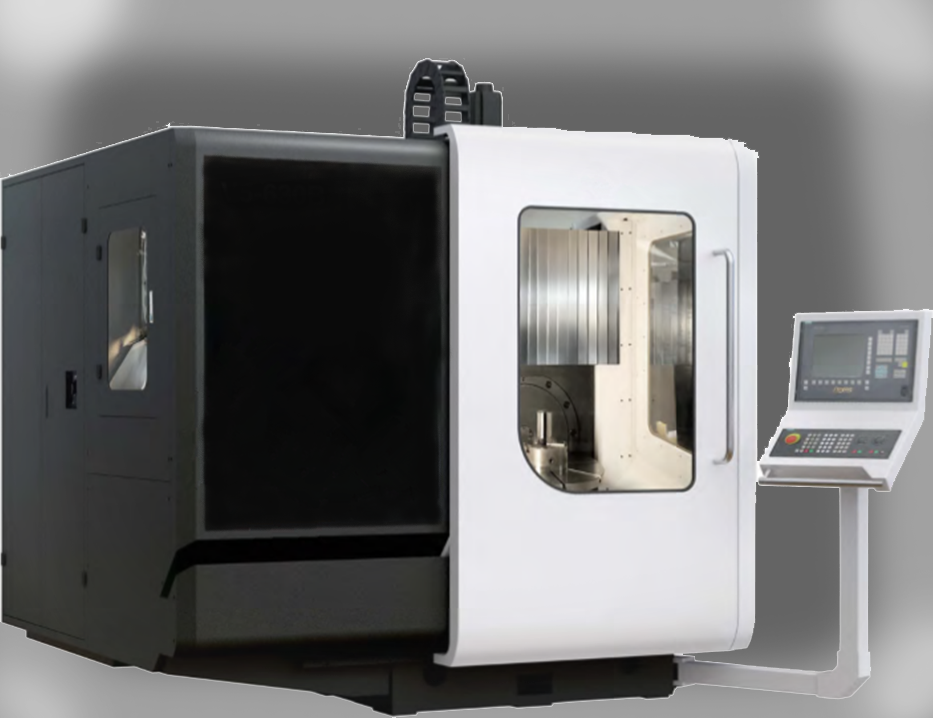

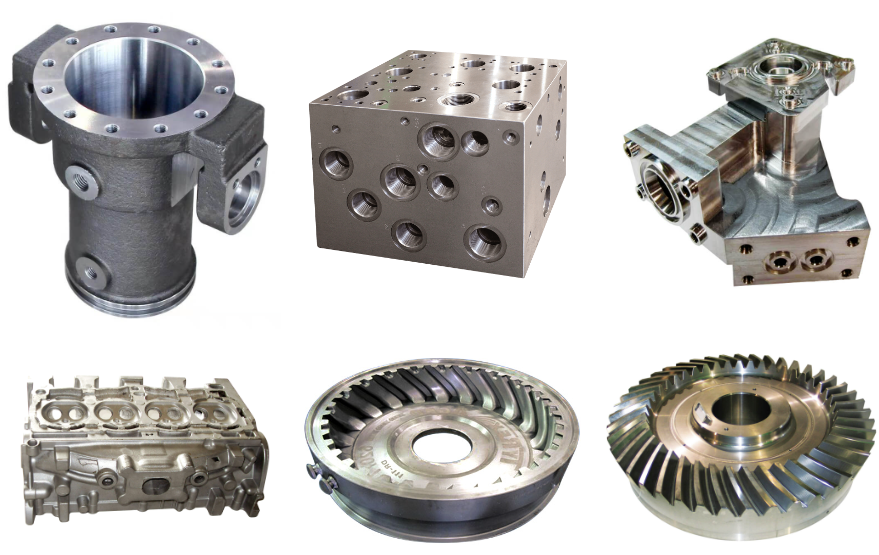

CTB self-developed five-axis vertical machining center, with stable C-shaped structure, standard high-speed motorized spindle, direct drive CNC turning-table and servo tool library, can achieve high-speed and high-precision processing of complex parts. It is widely used in the manufacture of electric vehicle motors, gearboxes, engines, moulds, robots, medical devices and other products.
|

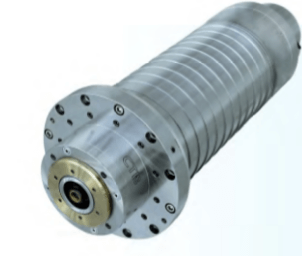

 | Self-development of BT40/HSKA63 motorized spindle, high precision, high power density, high dynamic response, greatly improve processing efficiency and accuracy, reduce machine noise and vibration |

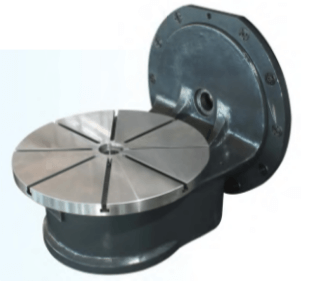

 | Self-developed BC dual-axis direct drive CNC turning-table, built –in motor with large torque, high precision, high dynamic response, greatly improve the performance and application of machine tools. |

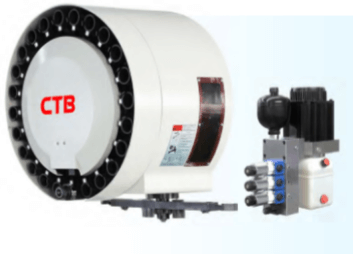

 | Hydraulic synchronous tool change technology realizes the coordinated control of servo tool library and servo hydraulic station. The tool switch time can reach 1.2s. |

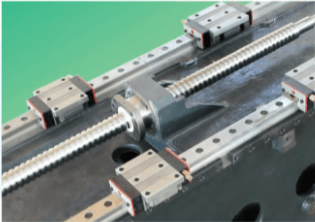

 | Equipped with precision high-speed screw, roller guide, to ensure the rigidity and accuracy of machine tools. |

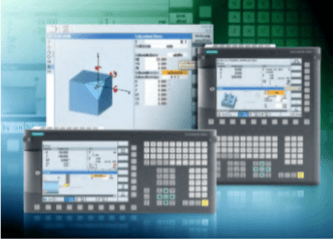

 | The powerful hardware architecture and intelligent control algorithm of SINUMERIK 840D sl, assisted by excellent driving and motor technology, enable the processing process to have very high dynamic performance and accuracy. |
|
